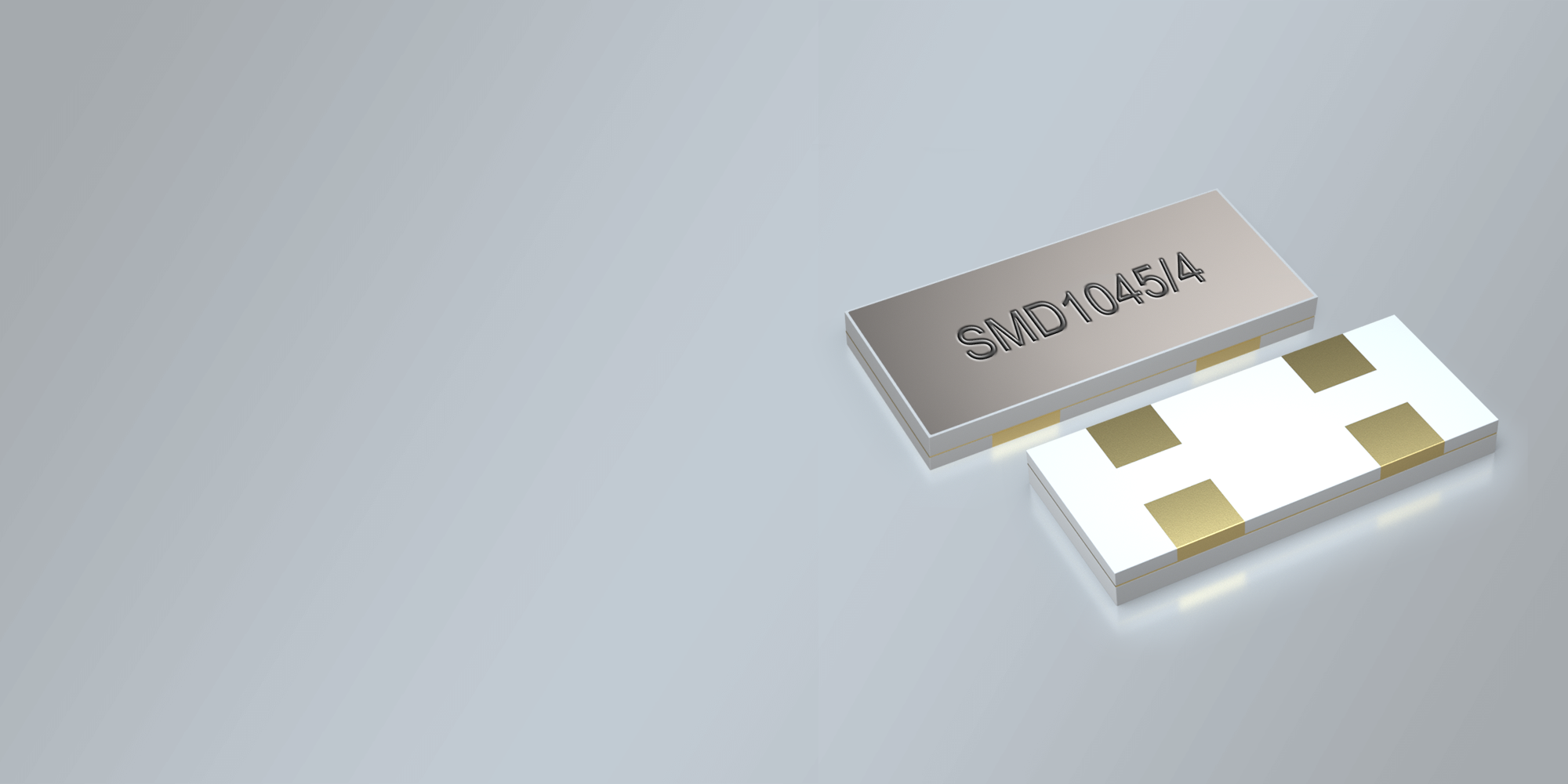

SMD QUARTZ CRYSTAL 10,0 x 4,5 mm 3,2768 - 10,0 MHz Klok
- Lage frequenties beschikbaar
- Frequentietoleranties van ±10ppm@+25°C, strakke temperatuurstabiliteit en lage veroudering leverbaar
- Uitbreid temperatuurbereik tot -40/85°C beschikbaar
- Uitstekende kloksignaalgenerator voor CPU's
- Algemene gegevens
- Temperatuurstabiliteit

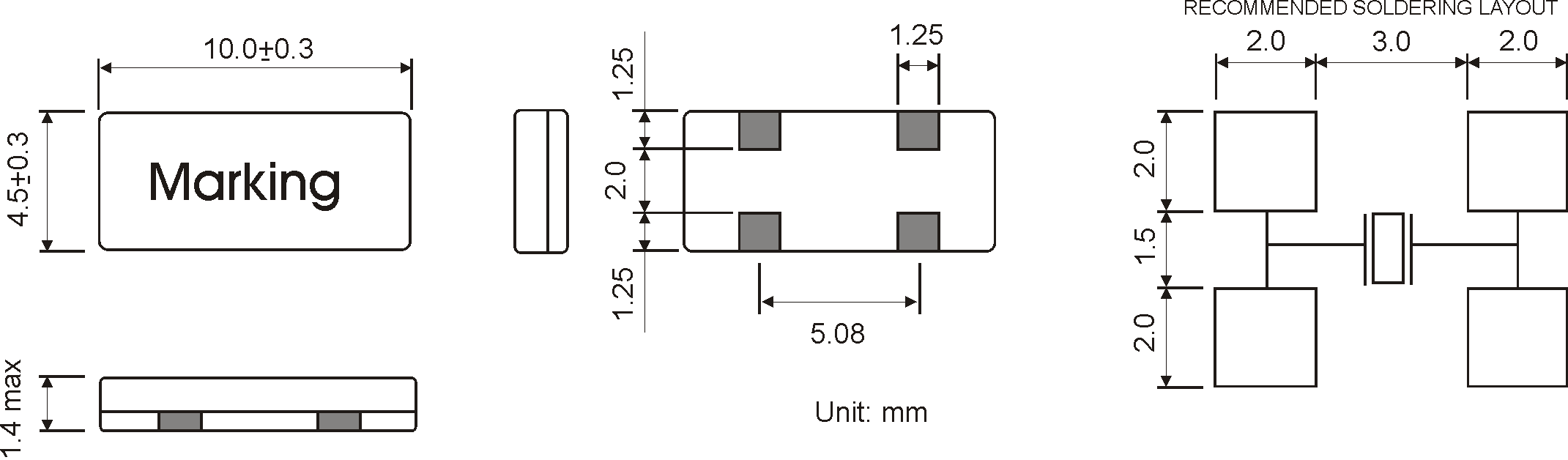

- Afmetingen
- Product Enquiry Configurator
- Sample Request Configurator
Product Name
SMD Quartz Crystal
Package
SMD Ceramic/4pad
Dimensions in mm (W x D x H)
10.0 x 4.5 x 1.4 mm
Frequency Range
3.2768 MHz - 10 MHz
DELIVERY FORM
Tape and Reel (1.000 pcs per reel)
STORAGE TEMPERATURE
-55°+125°C
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
AGING
±5 ppm per year
DRIVE LEVEL
0.1 mW standard (optional 0.5 mW available)
SHUNT CAPACITANCE C0
7 pF max.
RESONANCE RESISTANCE
120 Ω max.
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+85°C
LOAD CAPACITANCE (CL)
10 pF ~ 30 pF or Series, 18 pF standard
FREQUENCY TOLERANCES AT 25°C
±20 ppm ~ ±50 ppm
NUMBER OF SOLDER PADS
4
| ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
|---|---|---|---|---|
| 0/70 °C | • | • | • | • |
| -10/60 °C | • | • | • | • |
| -40/85 °C | • | • | • | |
| 0/50 °C | • | • | • | • |
| -20/70 °C | • | • | • | • |
