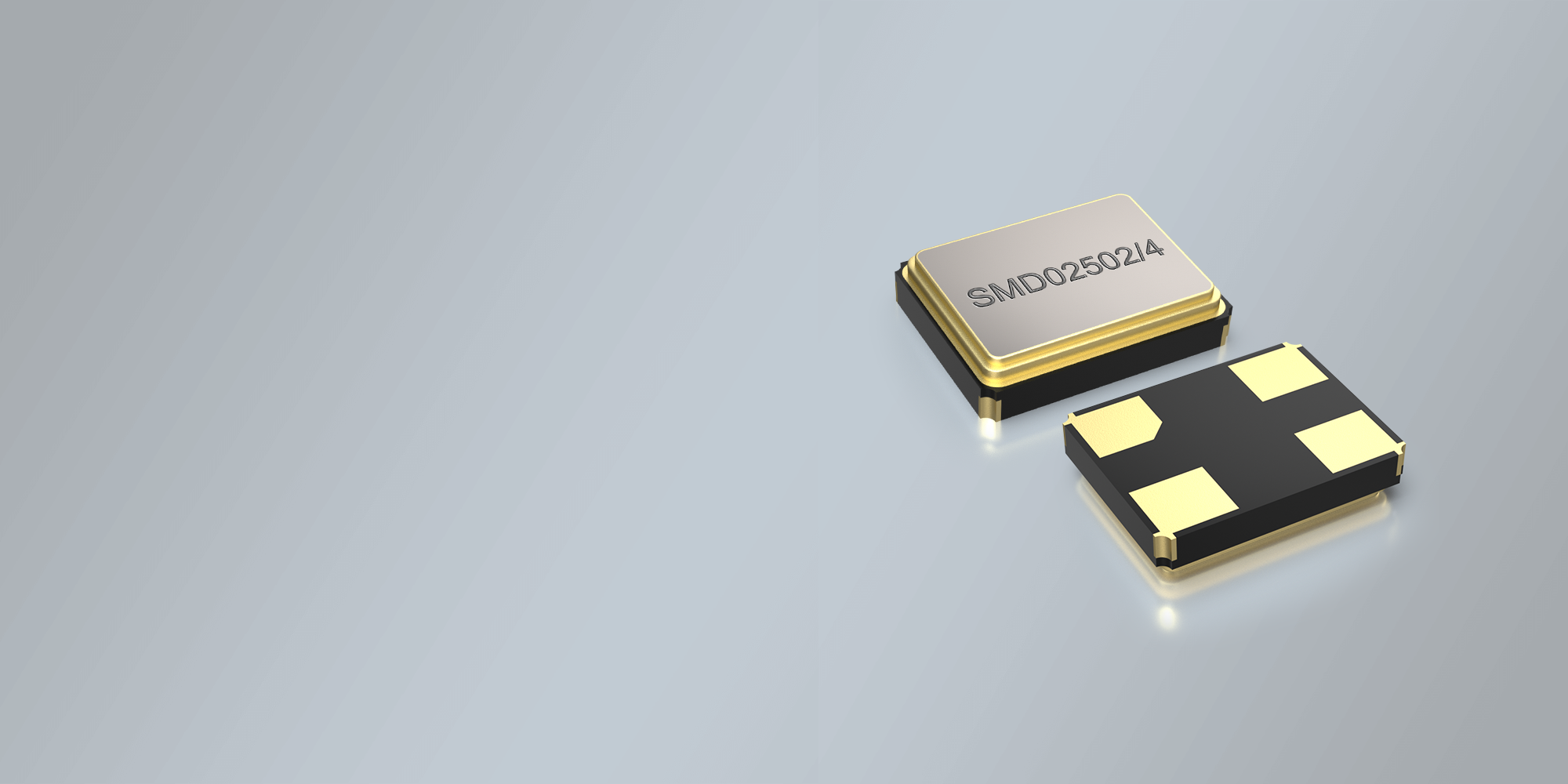

SMD KWARTZ CRYSTAL 2,5 x 2,0 mm 12,0 - 285,0 MHz
- Kleine tolerantie / strakke stabiliteit beschikbaar
- Hoge betrouwbaarheid voor lage kosten
- Resistentie gereduceerd kwartsontwerp voor snel en veilig starten van oscillatie
- Frequncytoleranties van ±10ppm@+25°C, strakke temperatuurstabilieten en lage veroudering leverbaar
- Uitstekende kloksignaalgenerator voor CPU's
- Algemene gegevens
- Temperatuurstabiliteit
- Afmetingen
- Toepassingen
- Product Enquiry Configurator
- Sample Request Configurator
Product Name
SMD Quartz Crystal

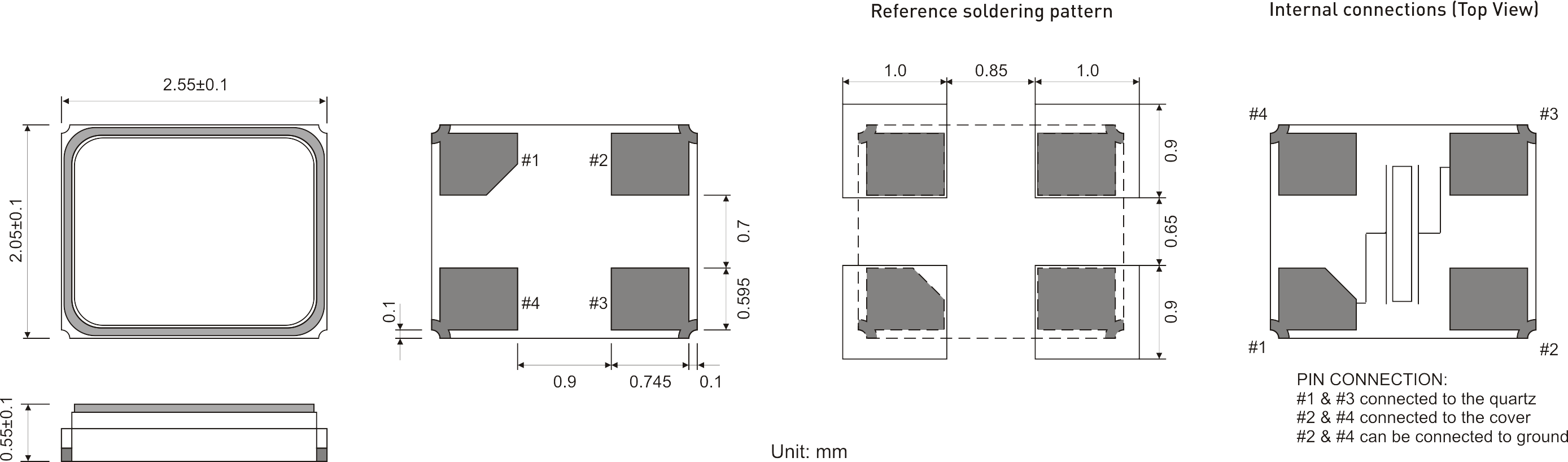

Package
SMD Ceramic/4pad
Dimensions in mm (W x D x H)
2.5 x 2.0 x 0.6 mm
Frequency Range
12.00 - 285.00 MHz
STANDARD FREQUENCIES
12.0 MHz / 16.0 MHz / 16.384 MHz /
18.432 MHz / 19.2 MHz / 20.0 MHz /
24.0 MHz / 24.576 MHz / 25.0 MHz /
26.0 MHz / 27.0 MHz / 27.12 MHz /
30.0 MHz / 32.0 MHz / 37.4 MHz /
38.4 MHz / 40.0 MHz / 48.0 MHz /
50.0 MHz / 54.0 MHzDELIVERY FORM
Tape and Reel (3.000 pcs per reel)
STORAGE TEMPERATURE
-55°+125°C
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
AGING
±2 ppm per year standard
DRIVE LEVEL
100 μW typ. / 200 μW max.
SHUNT CAPACITANCE C0
2 pF max.
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+125°C
LOAD CAPACITANCE (CL)
Series or 6 pF ~ 50 pF
FREQUENCY TOLERANCES AT 25°C
±10 ppm ~ ±50 ppm
NUMBER OF SOLDER PADS
4
| ±10 ppm | ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
|---|---|---|---|---|---|
| 0/70 °C | • | • | • | • | • |
| -10/60 °C | • | • | • | • | • |
| -20/70 °C | • | • | • | • | • |
| -40/85 °C | • | • | • | • | |
| -40/105 °C | • | • | |||
| -40/125 °C | • | ||||
| 0/50 °C | • | • | • | • | • |
