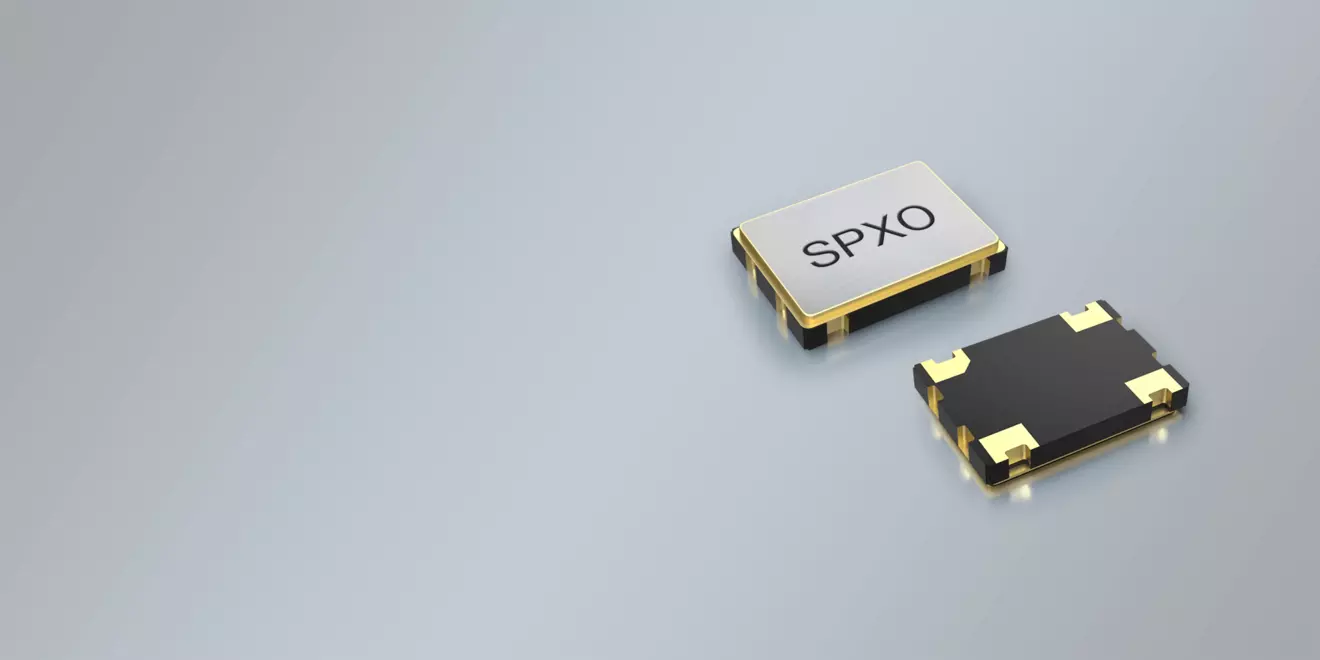

SMD SPXO OSCILLATOR 7.0 x 5.0 mm 1.0 - 160.0 MHz
- Hoge betrouwbaarheid voor lage kosten
- Breed frequentiestabiliteitsbereik van ±20 tot ±100 ppm
- Breed voedingsspanningsbereik van 1,8, 2,5, 2,8, 3,3 en 5,0 VDC
- Hoge stabiliteit, lage jitter, laag stroomverbruik
- Uitgebreid operabel temperatuurbereik -40°C tot +105°C
-
Product Name
SPXO
-
Package
SMD Ceramic/4pad
-

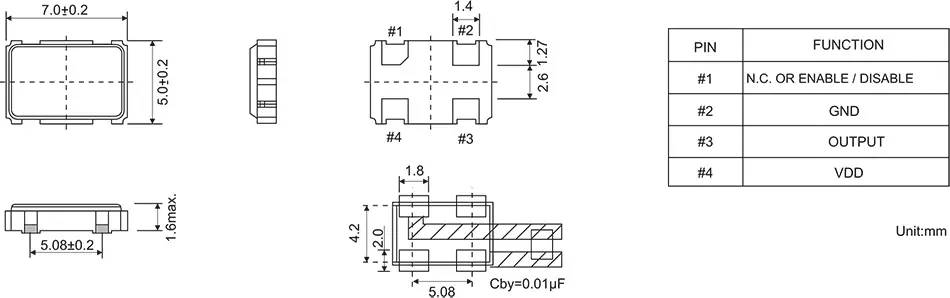

Dimensions in mm (W x D x H)
7.0 x 5.0 x 1.6 mm
-
Frequency Range
1.00 - 160.00 MHz
-
RoHS
Lead free and RoHS 2 compliant
-
DELIVERY FORM
TAPE & REEL
-
STORAGE TEMPERATURE RANGE
-55/+125°C
-
OPERATING TEMPERATURE RANGE
-10/+60°C ~ -40/+105°C
-
FREQUENCY STABILITY
0/+70°C ~ -10/+60°C = ±20~±100 ppm
-20/+70°C = ±25~±100 ppm
-40/+85°C ~ -40/+105°C = ±50~±100 ppm
-40/+125°C = ±100 ppm -
FREQUENCY RANGE VS SUPPLY VOLTAGE
1.8 VDC = 1.0 - 160.0 MHz
2.5 VDC = 1.0 - 160.0 MHz
2.8 VDC = 1.0 - 160.0 MHz
3.3 VDC = 1.0 - 160.0 MHz
5.0 VDC = 1.0 - 160.0 MHz
