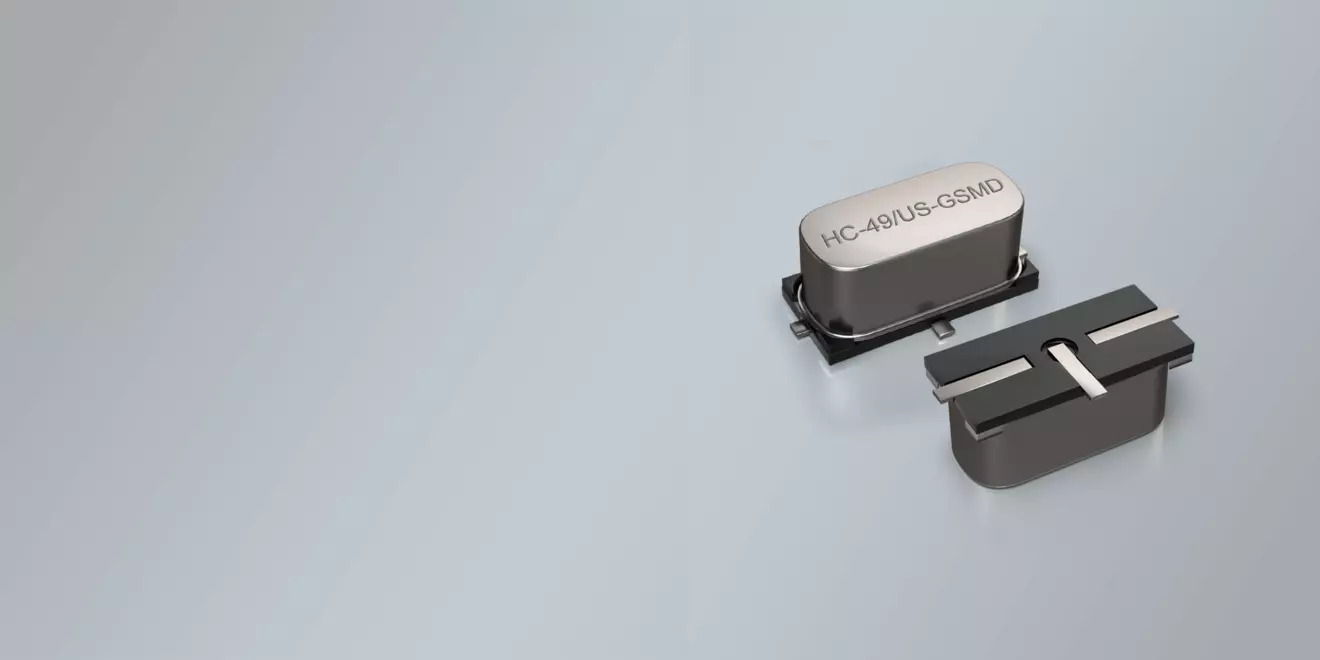

SMD QUARTZ CRYSTAL HC-49/US-GSMD 3.5 - 80.0 MHz

Hoge betrouwbaarheid voor lage kosten / Goedkoopste beschikbare SMD-Kristal
3 pad pakket voor aarding
Frequentietoleranties van ±10ppm@+25°C, strakke temperatuurstabiliteit en lage veroudering leverbaar
Laag profiel - 3.2 en 3,0 mm pakkethoogte beschikbaar
Uitgebreid temperatuurbereik tot -40/+125°C beschikbaar
Zeer nauwe frequentietoleranties beschikbaar

Product Name
Quartz Crystal
Package
SMD Metal
Dimensions in mm (W x D x H)
11.05 x 4.7 x 4.2 mm
Frequency Range
3.50 - 80.00 MHz
DELIVERY FORM
Tape and Reel (1.000 pcs per reel)
STORAGE TEMPERATURE
-55°+125°C
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
AGING
±3 ~ ±5 ppm per year standard
(±2 ppm available as option)
DRIVE LEVEL
100 µW typical
(0.01 mW ~ 1 mW possible on request)
SHUNT CAPACITANCE C0
7 pF max.
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+125°C
LOAD CAPACITANCE (CL)
6 pF ~ 50 pF
FREQUENCY TOLERANCES AT 25°C
±5 ppm ~ ±50 ppm
FREQUENCY RANGES (SEPARATED)
3.5 ~ 40.0 MHz AT-Fundamental
24.0 ~ 40.5504 MHz BT-Fundamental
24.576 ~ 80.0 MHz 3rd Overtone
NUMBER OF PINS
3 (middle pin for grounding)

	±10 ppm	±15 ppm	±20 ppm	±30 ppm	±50 ppm
0/70 °C	•	•	•	•	•
-10/60 °C	•	•	•	•	•
-40/85 °C		•	•	•	•
-40/125 °C					•
0/50 °C	•	•	•	•	•
-20/70 °C	•	•	•	•	•
